Fire cabinet
Choose the Ideal Supplier for Fire cabinet
Shuaa Al Zahra Safety Equipment Company specializes in supplying fire hose cabinet of various types that hold certifications from internationally recognized testing laboratories approved by civil defense authorities. These fire hose reel cabinet comply with the general safety requirements for buildings and facilities, aiming to meet customer needs and minimize fire losses as much as possible across the Kingdom of Saudi Arabia.

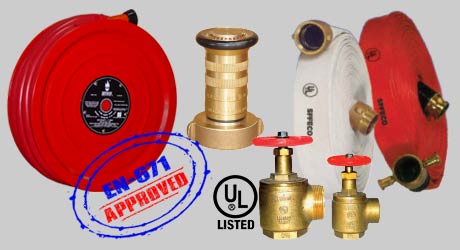

Fire Hose Reels & Accessories
Shuaa Al Zahra Safety Equipment Company deals in local manfactured Semi Rigid Fire Fighting Hoses which are designed and manufactured in compliance with BS EN-694:2014 standard through a reputed local factory in KSA.
| Model | Size | Classification |
|---|---|---|
| SH19R | 19mm | Type A, Class 2 |
| SH25R | 25mm | Type A, Class 2 |
Hose color is Red.
Hose length is 30 meter.
Maximum working pressure is 12 bar.
Proof pressure is 24 bar.
Minimum burst pressure is 42 bar.
Temperature range is -20°C to +60°C at ambient temperature condition in non aggressive or non-corrosive atmosphere.
The hose is doble layered with red cover and black lining. Shuaa Al Zahra Safety Equipment Company Fire Fighting hose is suitable to use with fixed fire fighting systems like fire hose reels. It’s flexibility helps to roll or handle the hoe easily.
Material used for inner lining and cover of hose is plasticized PVC compound and high tensile textile polyester yarn is used for reinforcement of hose.

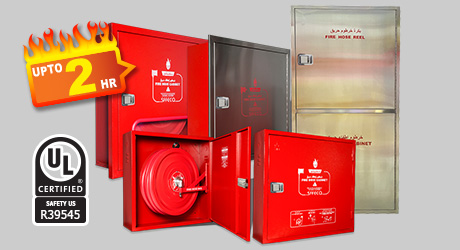

Fire Rated Cabinets
Shuaa Al Zahra Safety Equipment Company Fire Rated Fire Hose Cabinets are designed to specifically maintain the integrity of two hours fire walls with all our recessed and surface cabinets. Shuaa Al Zahra Safety Equipment Company has certified and listed these cabinets for combustible and noncombustible wall systems to meet the requirements of UL R-39545. The fire rated option assures the specifier that life safety codes will be maintained and by eliminating the need to continue the fire wall within the rough opening, saves the installer considerable time and expensive.
Shuaa Al Zahra Safety Equipment Company Fire Rated Cabinets have been manufactured with Red painted Mild Steel, Hairline, Mirror or Brush finish for Stainless Steel (304 or 316)

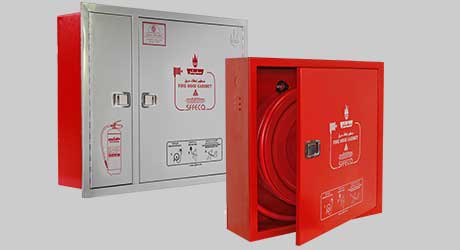

Fire Hose Reel and Cabinets
Shuaa Al Zahra Safety Equipment Company deals in Fire Hose Reel Cabinet model SF300 and SF600 series which are manufactured from steel or stainless steel, with thickness of 1 mm to 2 mm. Outer edges of hose reels are rolled over for safe handling and aesthetic apperance. Cabinet door handles are of stainless steel and turn handle chrome plated.
Hose Reel Drums pressed on hydraulic press to form ribs for strength and durability to avoid twisting while handling.
Electrostatic powder painted and oven baked to 200°C for apperance and protection from rust.
Cabinets can be surface mounted, recessed or semi-recessed. Cabinets of stainless steel also available with hairline or mirror finish.
| Model | Width | Height | Depth |
|---|---|---|---|
| SF300 | 800 | 800 | 230 |
| SF300S | 800 | 800 | 250 |
| SF300A | 800 | 800 | 250 |
| SF300AS | 800 | 800 | 250 |
| SF305/20 | 700 | 700 | 200 |
| SF305/30 | 700 | 700 | 250 |
| SF305A | 700 | 700 | 250 |
| SF305AS | 700 | 700 | 250 |
| SF600 | 1050 | 800 | 230 |
| SF600S | 1050 | 800 | 230 |
| SF600A | 1050 | 800 | 250 |
| SF600AS | 1050 | 800 | 250 |

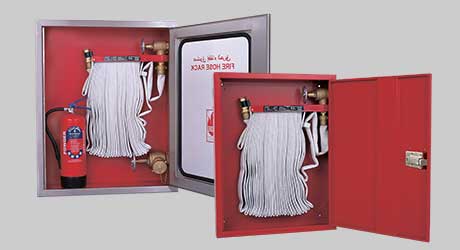

Fire Hose Rack and Cabinets
Shuaa Al Zahra Safety Equipment Company deals in Fire Hose Rack Cabinet model SFR150, SFR200 series which are manufactured by a reputed local factory from steel or stainless steel, with thickness of 1 mm to 2 mm. Cabinet door handles are of stainless steel and turn handle chrome plated.
Electrostatic powder painted and oven baked to 200°C for apperance and protection from rust.
Cabinets can be surface mounted, recessed or semi-recessed. Cabinets of stainless steel also available with hairline or mirror finish.
| Model | Width | Height | Depth |
|---|---|---|---|
| SFR150 | 650 | 850 | 160 |
| SFR150S | 650 | 850 | 160 |
| SFR200E | 750 | 850 | 180 |
| SFR200ES | 750 | 850 | 180 |
| SFR200EV | 750 | 940 | 200 |
| SFR200EVS | 750 | 940 | 200 |
- All Dimensions are in mm.
- S: Stainless Steel Frame Door, Optional: Full Stainless Steel.
- E: Extinguisher
- V: Extra Valve
